Emergency Ballast Replacement KVD188D-EM30 Tube Light Emergency Driver Emergency lighting battery pack

Emergency Ballast Replacement applies in Led constant current lighting luminaires’ normal lighting or emergency lighting mode, also can be only for emergency lighting purpose.

Emergency lighting solutions provided “charging”, and “discharging” functions, and use intelligent IC controlling circuits, according to be high exchange efficiency and smaller battery capacity.

Internal Li-ion battery, compatible with dimming or non-dimming led luminaire, external installation, emergency supply will be standing and charging by when AC grid electricity supply in normal, will be going to self-maintenance when fully charged, according to longer the battery’s lifespan

The emergency driver will be back up the lighting luminaires within 3 seconds when AC grid electricity stopped, to be sure the light can be working for 1 to 3hrs normally.

Emergency Ballast Replacement  Tube Light Emergency Driver Emergency lighting battery pack

5W-30W Full Power LED Emergency DriverBattery Operated LED LightsKVD188D-EM30 is a 100% full power battery-operated LED Tube emergency solution, it means that the emergency power has to be the same as the lighting fixture power, such as if your light power is 5w, you need to add a 5w emergency power for it,

5W-30W Emergency Ballast Replacement specifications
1. Emergency Power: 5W-30W
2. Lighting fixture Power: 5W-30W
3. Conversion Efficiency: ≥95%
4. Battery Type: Li-ion battery
5. Emergency duration time: 1.5 hours or 3 hours (can be customized)
6. Input Voltage: AC100-277V
7. Output Voltage: DC185-280V
8. Charging Time: 24 hours
9. Product Weight: based on the battery capacity
10. Working Lifetime(Hour)30000
11. 2 years warranty.
12. Best quality and factory price

LED Emergency Driver Features
Built with a compact Li-ion battery whose capacity can be customized for a specific emergency hour
metal casing
Automatically turns on LED lighting when there is a main power failure
The led emergency driver battery backup with overcharge and discharge protection, output short protection, overload protection, over-temperature protection
With indicator: Green=Main Circuit, Red=Charging
Each led emergency driver are passed a 100% full power load aging test, CE Rosh certified

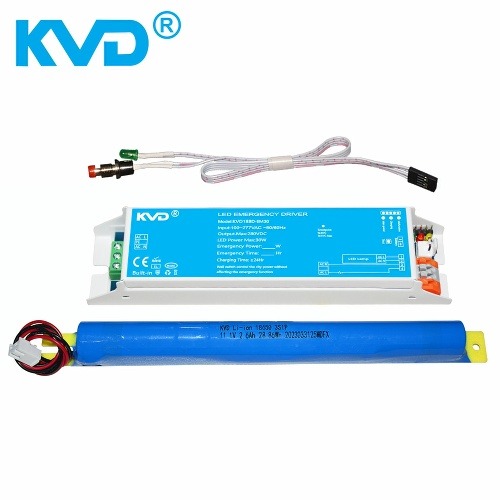

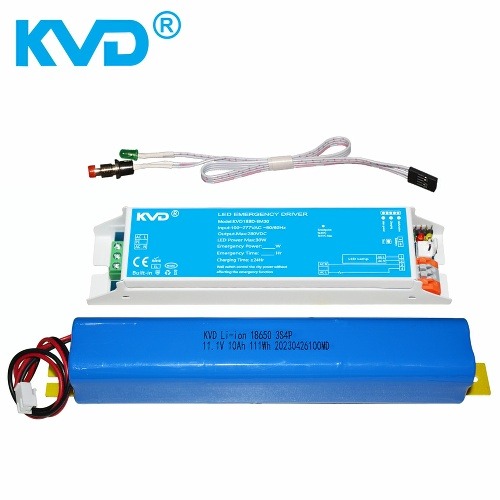

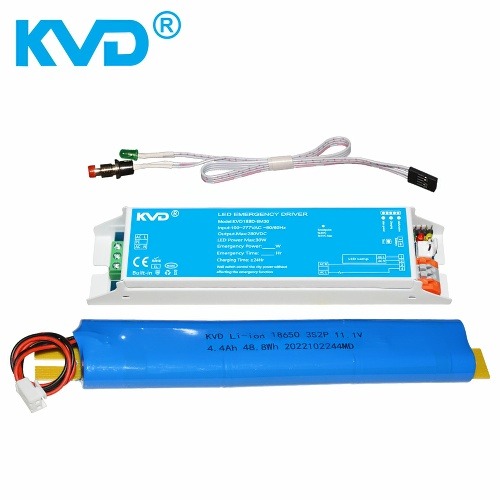

Each LED lighting emergency module is consist of an emergency driver and battery Pack, Emergency Conversion Kits

Ours this emergency lights ballast, can power lights with a maximum of 32W external LED drivers, So it is a perfect LED emergency conversion kit for LED Tube lights, panel lights, ceiling lights, downlight, and tri-proof lights.

HS8504401400 code) for led emergency power supply, Emergency Light Battery Kitled light emergency batteryEmergency lighting battery pack, Fire fighting emergency ballast, Emergency light conversion kit, high bay led light with battery backup, Lighting Ballast Battery Pack, Emergency led drivers

Working Environment Attention

Working & storage temperature: -10℃–+45℃(Standard temperature 28℃)
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching it on for a long time usage.
