How do you connect an Emergency LED Driver Battery Backup ?

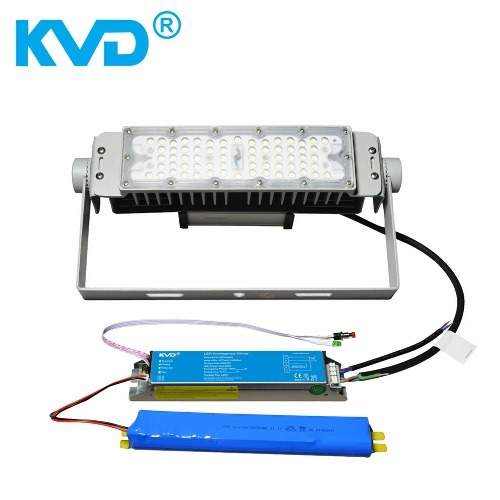

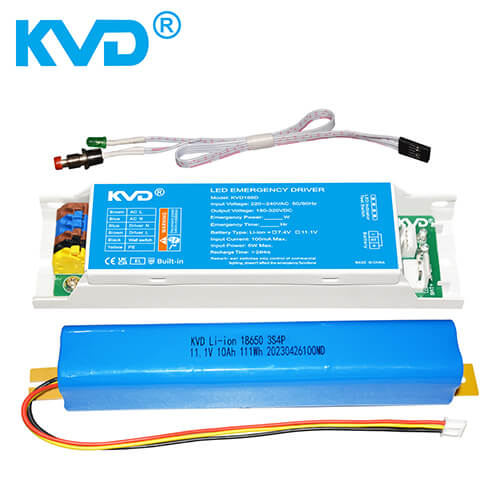

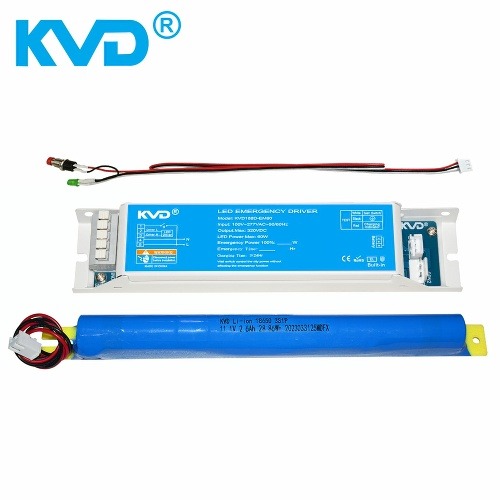

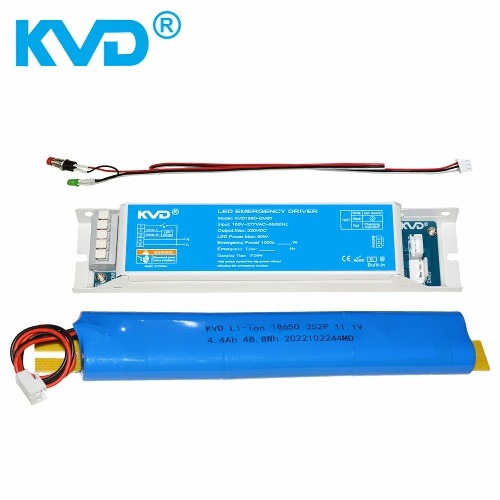

KVD188D-EM60 Led Light Emergency Battery to apply in Led constant current lighting luminaires’ normal lighting or emergency lighting mode, also can be only for emergency lighting purpose.

Emergency lighting solution provided “charging”, and “discharging” functions, use intelligent IC controlling circuit, according to be high exchange efficiency and smaller battery capacity.

Compatible with dimming or non-dimming led luminaire, external installation, emergency supply will be standing and charging by when AC grid electricity supply in normal, will be going to self-maintenance when fully charged, according to longer the battery’s lifespan

The emergency driver will be back up the lighting luminaires within 1 second when AC grid electricity stopped, to be sure the light can be working for 1 to 3hrs normally.

Categories: , , , , , ,

30-60W Full Power Led Light Emergency Battery， Battery Operated LED Lights，KVD188D-EM60 is a 100% full power battery operated LED Tube emergency solution, it means that the emergency power has to be the same with the lighting fixture power, such as if your light power is 50w, you need to add a 50w emergency power for it,

30W-60W Led Light Emergency Battery kits specifications

Emergency LED Driver Battery Backup Kits specifications:
1. Emergency Power: Full Power For Lamps
2. Lighting fixture Power: 30W-60W
3. Conversion Efficiency: ≥95%
4. Battery Type: Li-ion battery
5. Emergency runtime :1.5 hours to 3 hours
6. Input Voltage: AC100-277V
7. Output Voltage: DC180V-280V to Driver AC
8. Charging Time: 24 hours
9. Product Weight: 6000mAh Li-ion battery-1000g   8000mAh Li-ion battery-1100g
10. Working Lifetime(Hour)30000
11. 3 years warranty.
12. Best quality and factory price.
13. Obtain CE  ROHS

Emergency Ballast  Advantages:
Lighting emergency products
Obtained CE  certifications
Comply CE  ordinances
Compatible with all brands of constant current LED drivers
Constant current output
High voltage output
Low energy consumption complies with CEC standards
Charging and dis-charging protection function and over heat temp. protection
Battery zero power consumption under static state
Mock-up electricity pause emergency testing function
Can be power off under emergency status
Indication light: city grid electricity,charging, fault
Seasonal self detect function
Protection functions: over voltage, short circuit, over load and open circuit
Metal housing, comply EMC, FCC and C tick ordinances
IP grade: IP20
We obtained international air and sea transportation documents



Working Environment Attention

Working & storage temperature: 0℃–+50℃（Standard temperature 20℃-35℃ is best ）
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching on for long time usage.
