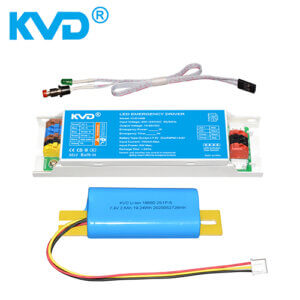

Emergency LED driver for 10 to 70W LED light output power 4W for 3 hours

KVD188B-EM08

Emergency drivers apply in Led constant current lighting luminaires’ normal lighting or emergency lighting mode, also can be only for emergency lighting purposes.

Emergency lighting solutions provided “charging”, and “discharging” functions, and use intelligent IC controlling circuits, according to be high exchange efficiency and smaller battery capacity.

Internal Li-ion battery, compatible with dimming or non-dimming led luminaire, external installation, emergency supply will be standing and charging by when AC grid electricity supply in normal, will be going to self-maintenance when fully charged, according to longer the battery’s lifespan

The emergency driver will be back up the lighting luminaires within 3 seconds when AC grid electricity stopped, to be sure the light can be working for 1 to 3hrs normally.

This is an LED emergency light battery drive kit for indoor use, lighting emergency solution, and LED emergency light with an external driver, but the LED tube can only use a 100% full power LED emergency driver. If you are looking for an LED emergency driver power kit for LED lights, please click here

KVD188B-EM08
LED emergency battery backup Kit specifications:
1. Emergency Power: 4W 6W 8W
2. Lighting fixture Power: 10W-70w
3. Conversion Efficiency: ≥95%
4. Battery Type: 2 pcs Li-ion battery inside
5. Emergency duration time: 1.5 hours with 2000 mAh Li-ion battery or 3 hours with 3000 mAh Li-ion battery
6. Input Voltage: AC100-277V
7. Output Voltage: DC20V-80V
8. Charging Time: 24 hours
9. Product Weight: 2000mAh Li-ion battery-230g   3000mAh Li-ion battery-250g
10. Working Lifetime(Hour)30000
11. 2 years warranty.
12. Best quality and factory price

LED Emergency Product Advantages:
Lighting emergency products
Simple wiring connection and easy installation
Installed outside of the luminaire
Easy maintenance, quick accessories replacement
Apply to dimmable lighting products
Seasonal self-testing
The battery has to charge and discharging protection
Elegant plastic housing, comply high-pot 4000V, gold wire test.
Comply with international transportation conditions and requirements
Aluminum construction, save transportation costing
Automatically turns on LED lighting when there is a main power failure.

Working Environment Attention

Working & storage temperature: -10℃–+45℃(Standard temperature 28℃)
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching on for long time usage.
