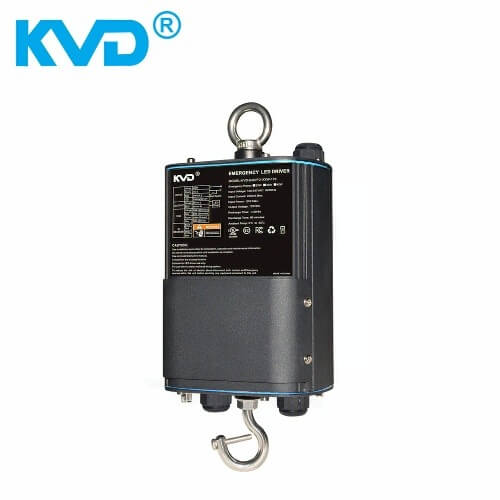

Lighting Contractor Select Emergency LED Driver Battery Output Power 30W Duration 1.5 Hours

KVD-EMUFO-XXW-170
Emergency LED Driver Battery apply in Led constant current lighting luminaires’ normal lighting or emergency lighting mode, also can be only for emergency lighting purposes.

Emergency lighting solutions provided “charging”, and “discharging” functions, and use intelligent IC controlling circuits, according to be high exchange efficiency and smaller battery capacity.

Internal Li-ion battery, compatible with dimming or non-dimming led luminaire, external installation, emergency supply will be standing and charging by when AC grid electricity supply in normal, will be going to self-maintenance when fully charged, according to longer the battery’s lifespan

The emergency driver will be back up the lighting luminaires within 3 seconds when AC grid electricity stopped, to be sure the light can be working for 1 to 3hrs normally.

This is an emergency battery-driven backup solution for lighting. It is suitable for LED lamps with external drivers, as well as all dimmable lighting products with emergency power-off function, as well as UFO high bay lights, supporting LED lamps 50W-300W, emergency output The power is 25W/30W/40W.

50W-300W Emergency LED Driver Battery specifications:
1. Emergency Power : 25W 30W 40W options
2. Lighting fixture Power: 50W-300w
3. Conversion Efficiency: ≥95%
4. Built-in multi-cell batteries
5. Emergency duration time: 1.5 hour
6. Input Voltage: AC100-347V
7. Output Voltage: DC170V p.s connect to constant current driver’s input directly
8. Charging Time: 24 hours
9. Product Weight: Li-ion battery
10. Working Lifetime(Hour)30000
11. Driver 5 years warranty.Two-year battery warranty
12. Best quality and factory price

Emergency LED Driver Battery Features

Built-in multi-cell batteries, neat looking and convenient for use.
Self-test function (3 months).
Metallic case,comply EMC,FCC,C-tick IP standard:IP40
Automatically turns on LED lighting when there is a main power failure.
The LED emergency driver battery backup with overcharge and discharge protection, output short protection, overload protection, over-temperature protection
With indicator: Red=Charging.
Each led emergency driver is passed a 100% full power load aging test, UL Rosh certified.

Working Environment Attention

Working & storage temperature: -0℃–+50℃(Standard temperature 28℃)
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching it on for a long time usage.
