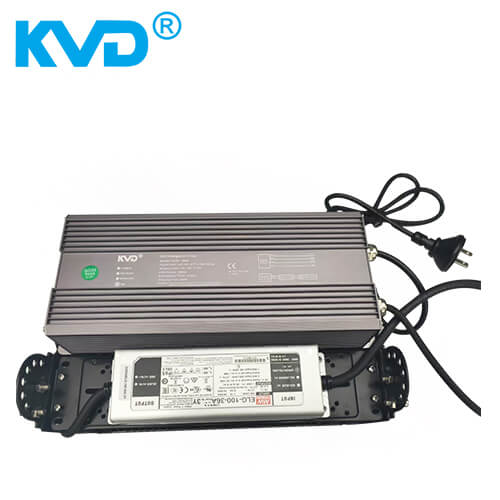

KVD188D 50w-150w LED Emergency Light Battery Pack Power Supply – 188D model is 100% output power emergency solution for LED Tube which output power at 50-150w. The emergency power is the same with the lighting power when main failures. With the box container outside, you can put the emergency driver, LED light driver and battery pack all in the box.
Emergency LED Driver Battery Backup Kits specifications:
1. Emergency Power: Full Power For Lamps
2. Lighting fixture Power:50-150w
3. Conversion Efficiency: ≥95%
4. Battery Type: Li-ion battery
5. Emergency runtime :1.5 hours to 3 hours
6. Input Voltage: AC100-277V
7. Output Voltage: DC180V-320V to Driver AC
8. Charging Time: 24 hours
9. Product Weight: 10000mAh Li-ion battery-35000g
10. Working Lifetime(Hour)30000
11. 3 years warranty.
12. Best quality and factory price.
13. Obtain CE ROHS
Emergency Ballast Advantages:
Lighting emergency products
Obtained CE certifications
Comply CE ordinances
Compatible with all brands of constant current LED drivers
Constant current output
High voltage output
Low energy consumption complies with CEC standards
Charging and dis-charging protection function and over heat temp. protection
Battery zero power consumption under static state
Mock-up electricity pause emergency testing function
Can be power off under emergency status
Indication light: city grid electricity,charging, fault
Seasonal self detect function
Protection functions: over voltage, short circuit, over load and open circuit
Metal housing, comply EMC, FCC and C tick ordinances
IP grade: IP65
We obtained international air and sea transportation documents
Working Environment Attention
Working & storage temperature: 0℃–+50℃（Standard temperature 20℃-35℃ is best ）
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching on for long time usage.
