Full Power Emergency Driver Emergency Light Battery Output power 70W 2 Hours

Emergency driver apply in Led constant current lighting luminaires’ normal lighting or emergency lighting mode, also can be only for emergency lighting purpose.

Emergency lighting solution provded “charging”, “discharging” functions, use intellgent IC controlling circuit, according to be high exchange efficiency and smaller battery capacity.

Internal Li-ion battery, compatible with dimming or non-dimming led luminaire, external installation, emergency supply will be standing and charging by when AC grid electricity supply in normal, will be going to self maintenance when fully charged,according to enlonger the battery’s lifespan

Emergency driver will be back up the lighting luminaires within 3 seconds when AC grid electricity stopped, to be sure the light can be working 1 to 3hrs normally.

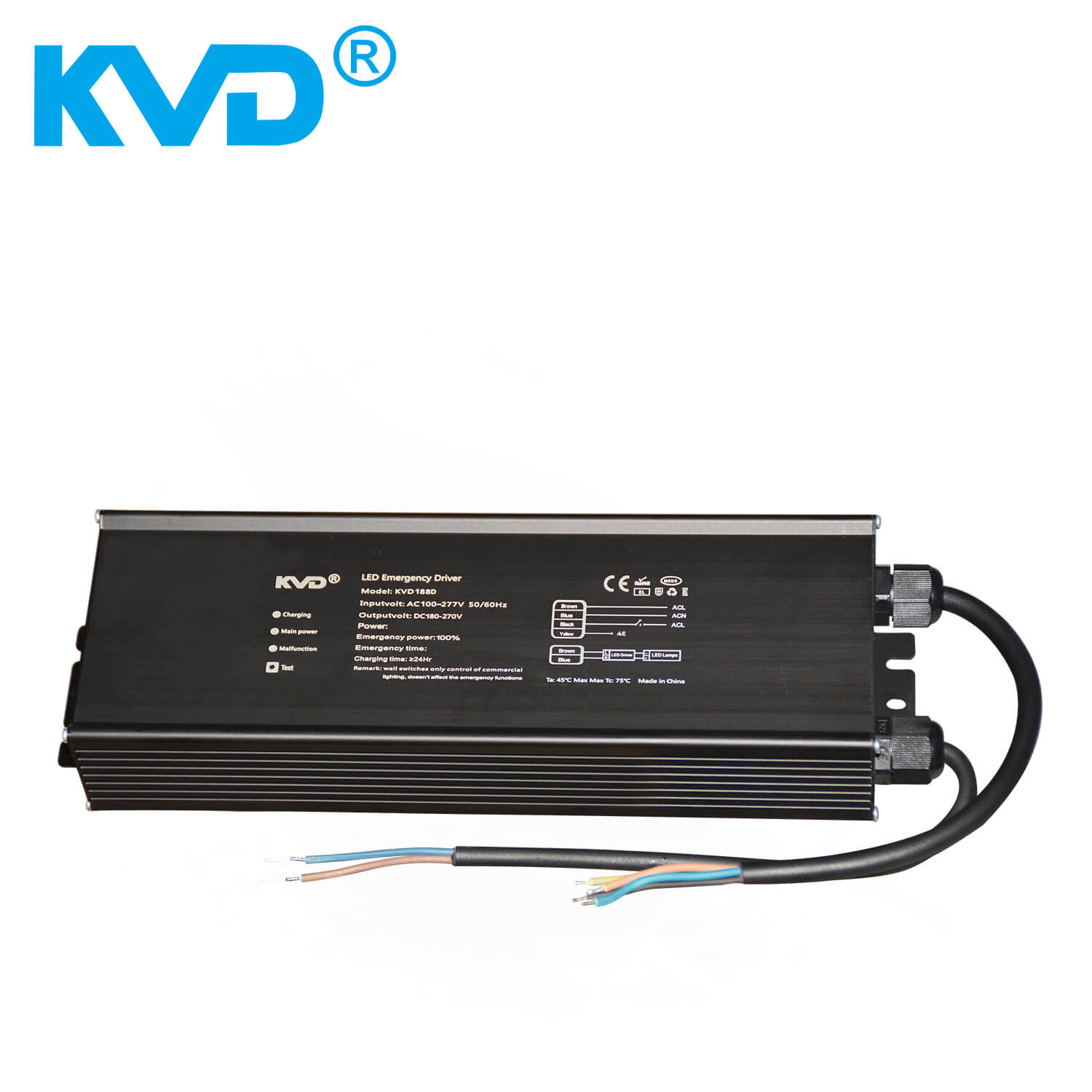

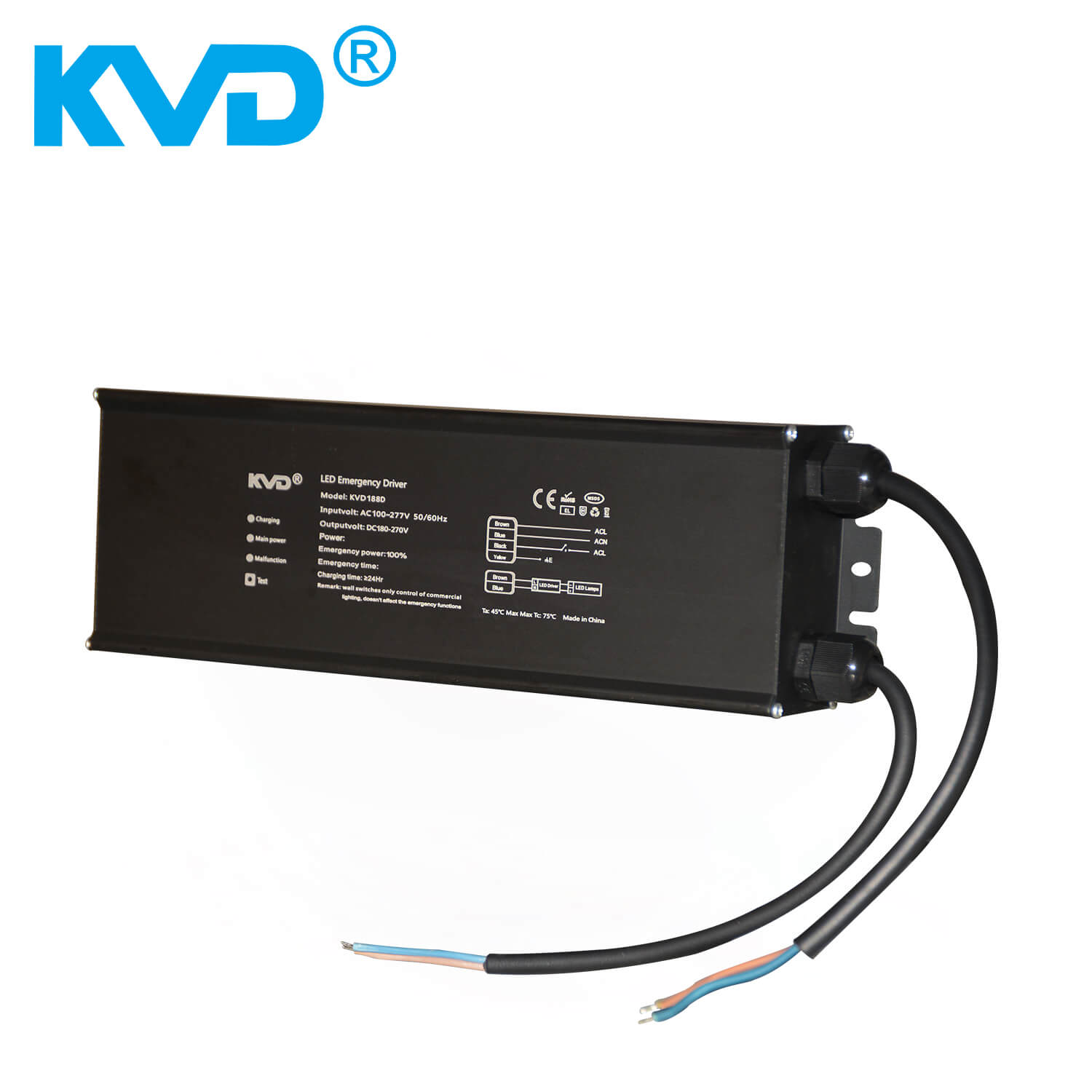

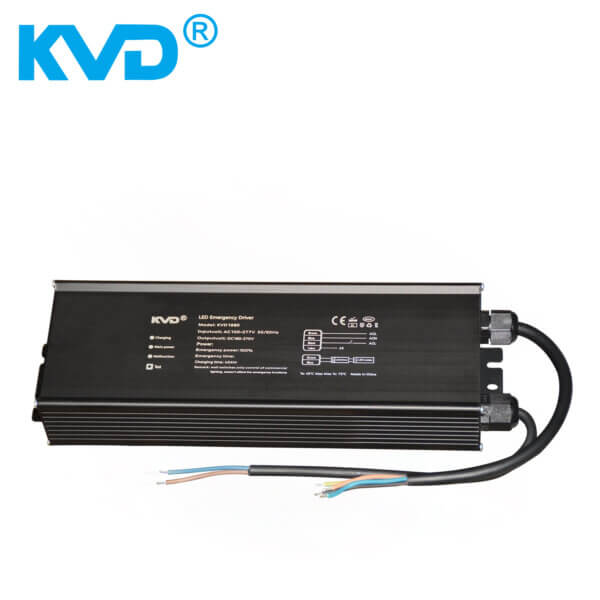

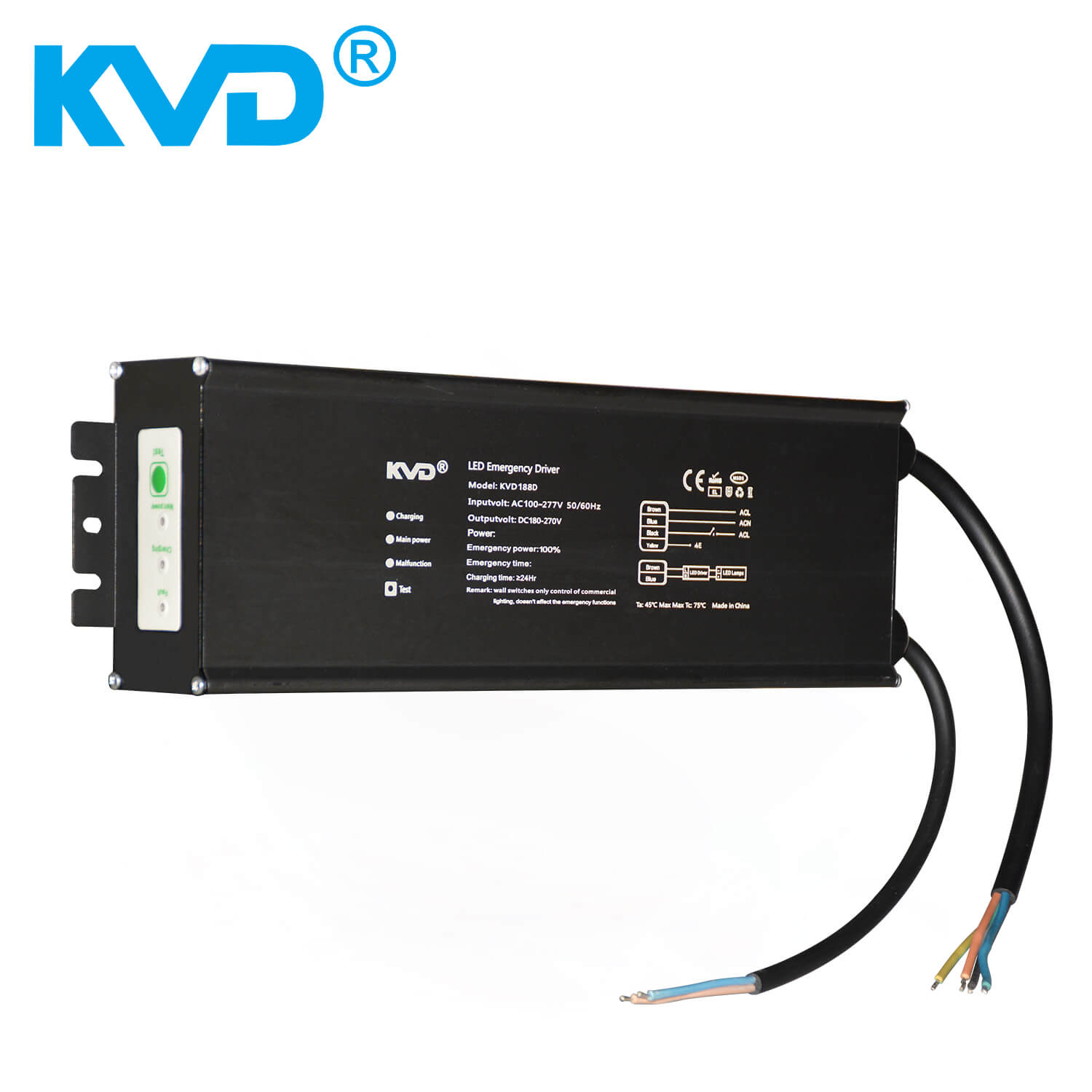

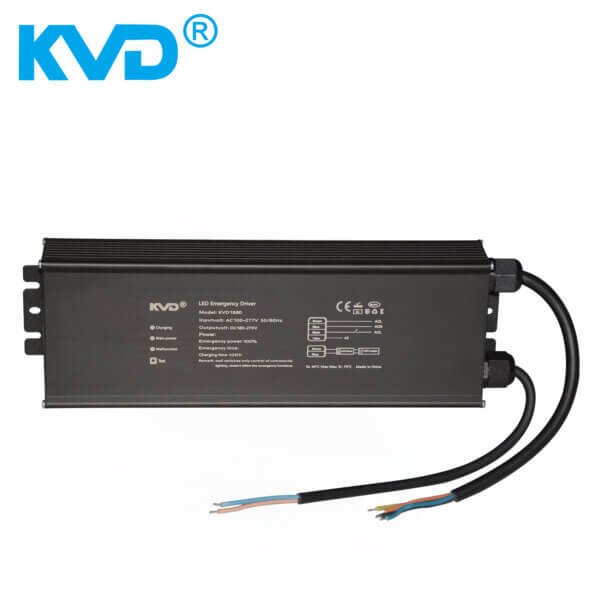

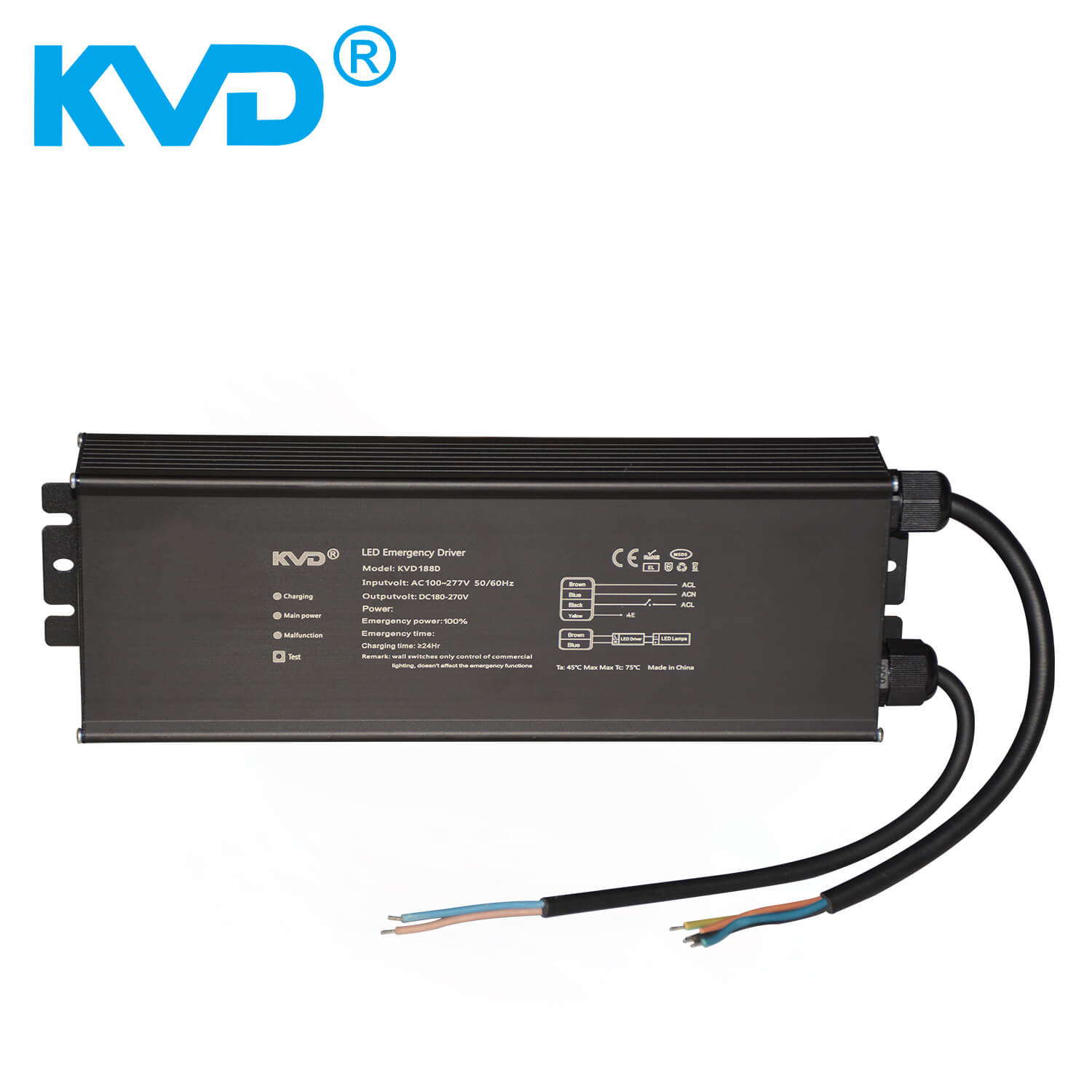

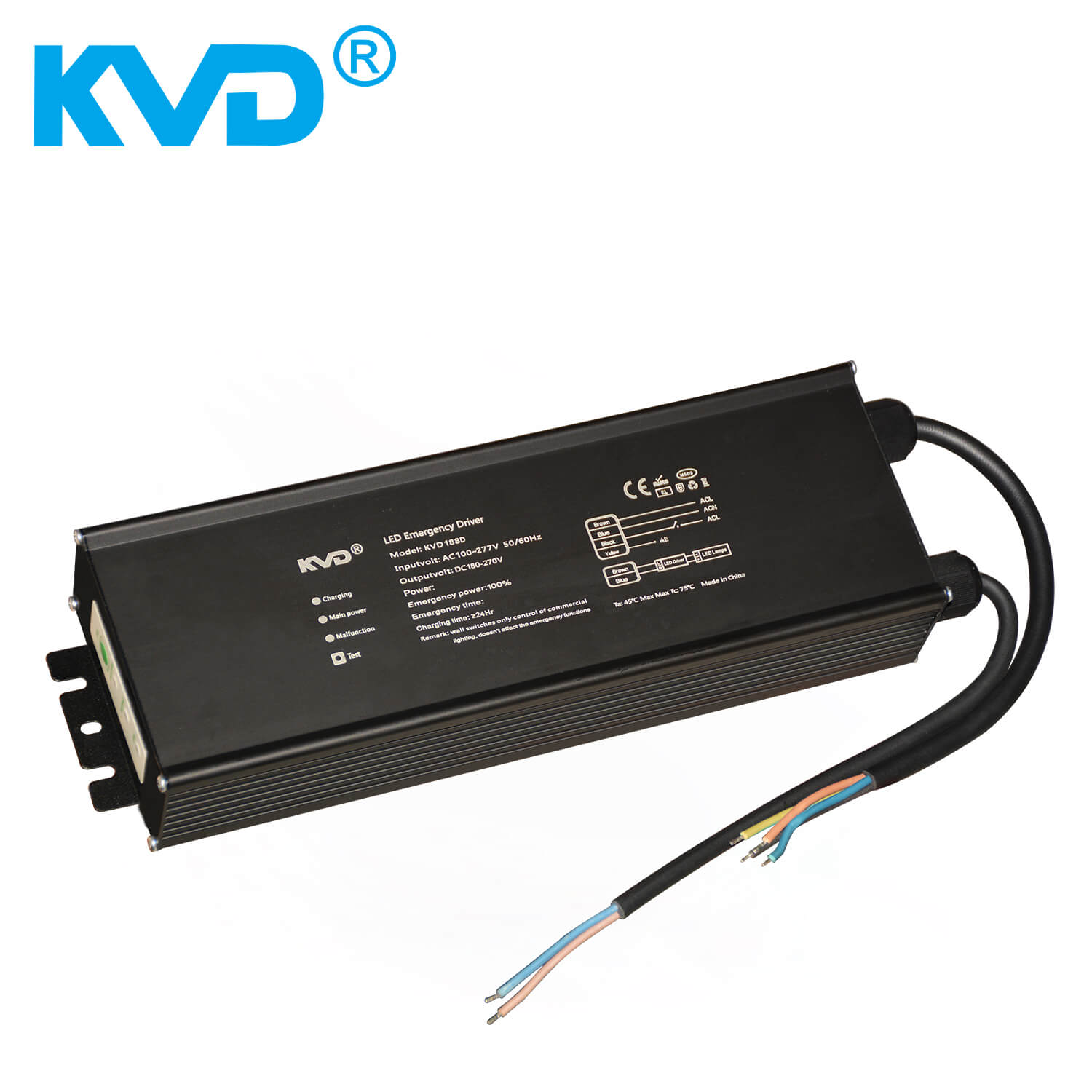

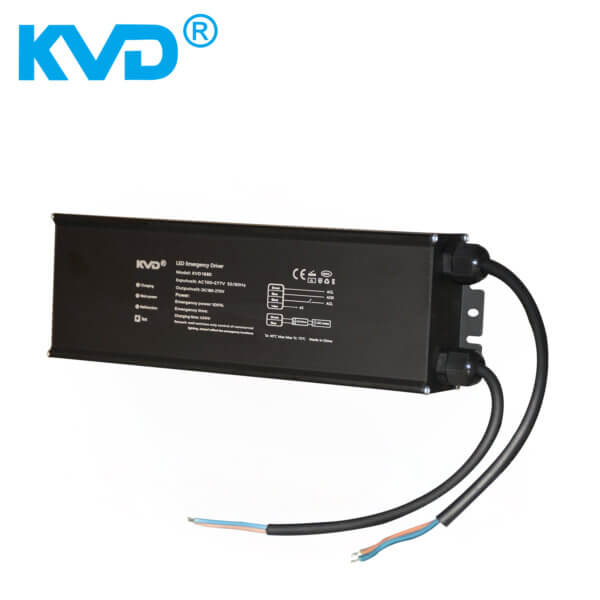

50W-150W Full Power LED Emergency Driver, Battery Operated LED Lights,KVD188D-EM150 is a 100% full power battery operated LED Tube emergency solution, it means that the emergency power has to be the same with the lighting fixture power, such as if your light power is 50w, you need to add a 50w emergency power for it,

50W-150W battery operated LED Light,Emergency Driver conversion kit specifications
1. Emergency Power : 50W-150W
2. Lighting fixture Power: 50W-150W
3. Conversion Efficiency: ≥95%
4. Battery Type: Li-ion battery
5. Emergency duration time: 1.5 hour or 3 hours (can be customized)
6. Input Voltage: AC100-277V
7. Output Voltage: DC185-280V
8. Charging Time: 48 hours
9. Product Weight: based on the battery capacity
10. Working Lifetime(Hour)30000
11. 2 years warranty.
12. Best quality and factory price

LED emergency driver Features
Built with compact Li-ion battery which capacity can be customized for specific emergency hour
Aluminum shell material is lighter
Automatically turns on LED lightings when there is a main power failure
The led emergency driver battery backup with over charge and discharge protection, output short protection, overload protection,over temperature protection
With indicator: Green=Main Circuit, Red=Charging
Each led emergency driver are passed 100% full power load aging test, CE Rosh certified

Working Environment Attention

Working & storage temperature: -10℃–+45℃(Standard temperature 28℃)
To ensure a longer lifetime, LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in warehouse, emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in a right way.
Please make sure wire connection is correct before switch on for a longer time usage.
