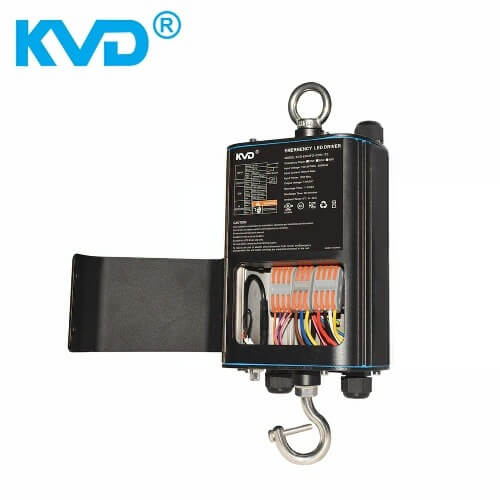

UFO HIGH Bay Light Lighting Emergency Led Driver Battery Backup Emergency Light Module

KVD-EMUFO-XXW-170
LED emergency conversion kits apply in Led constant current lighting luminaires’ normal lighting or emergency lighting mode, also can be only for emergency lighting purposes.

Emergency lighting solutions provided “charging”, and “discharging” functions, and use intelligent IC controlling circuits, according to be high exchange efficiency and smaller battery capacity.

Internal Li-ion battery, compatible with dimming or non-dimming led luminaire, external installation, emergency supply will be standing and charging by when AC grid electricity supply in normal, will be going to self-maintenance when fully charged, according to longer the battery’s lifespan

The emergency ballast will be back up the lighting luminaires within 3 seconds when AC grid electricity stopped, to be sure the light can be working for 1 to 3hrs normally.

Categories: , , , , , , , , ,

UFO HIGH Bay Light Emergency Led Driver Battery Backup Emergency Light Module AC100-347V

This is an Led Light Emergency Battery Backup Kits solution for UFO Highbay. It is suitable for LED lamps with external drivers, as well as all dimmable lighting products with emergency power-off function. supporting LED lamps 50W-300W, emergency output The power is 25W/30W/40W.

Emergency LED Driver Battery Backup Kits specifications:
1. Emergency Power: 25W  30W 40W
2. Lighting fixture Power: 50-300w
3. Conversion Efficiency: ≥95%
4. Battery Type: Li-ion battery
5. Emergency runtime :1.5 hours
6. Input Voltage: AC100-347V
7. Output Voltage: DC170V with 0/1-10V
8. Charging Time: 24 hours
9. Product Weight: 25W-3300g ,30W-3500g ,40W-3500g
10. Working Lifetime(Hour)30000
11. 5 years warranty.
12. Best quality and factory price.
13. Obtain UL,BC,FCC

Emergency Ballast  Advantages:
Lighting emergency products
Obtained UL,BC,FCC certifications
Comply UL,BC,FCC ordinances
Compatible with all brands of UFO Highbay
Constant power output
High voltage output
Low energy consumption complies with CEC standards
Charging and dis-charging protection function and over heat temp. protection
Battery zero power consumption under static state
Mock-up electricity pause emergency testing function
Can be power off under emergency status
Indication light: city grid electricity,charging, fault
Seasonal self detect function
Protection functions: over voltage, short circuit, over load and open circuit
Metal housing, comply EMC, FCC and C tick ordinances
IP grade: IP65
We obtained international air and sea transportation documents



Working Environment Attention

Working & storage temperature: 0℃–50℃（Standard temperature 20℃-35℃ is best ）
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching on for long time usage
