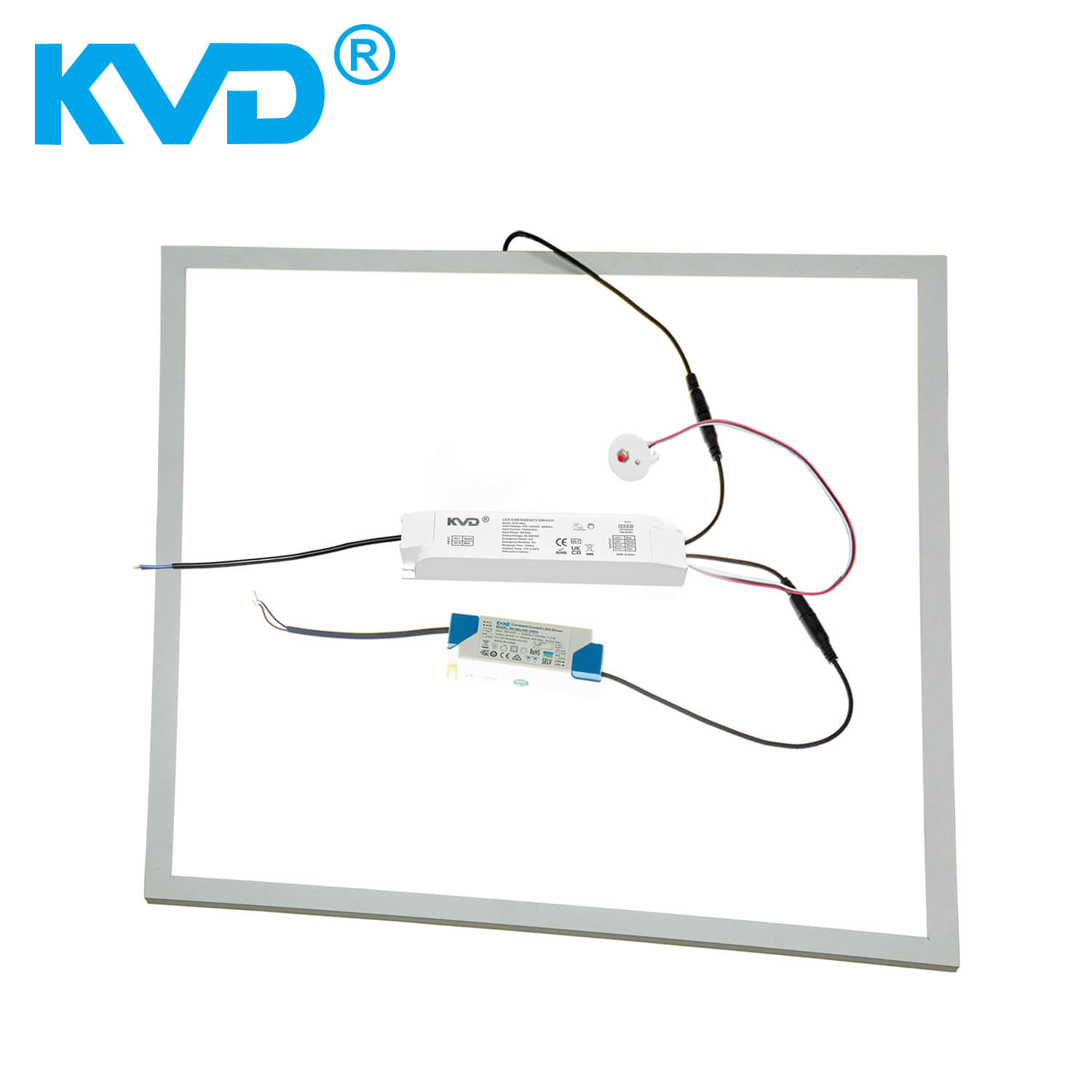

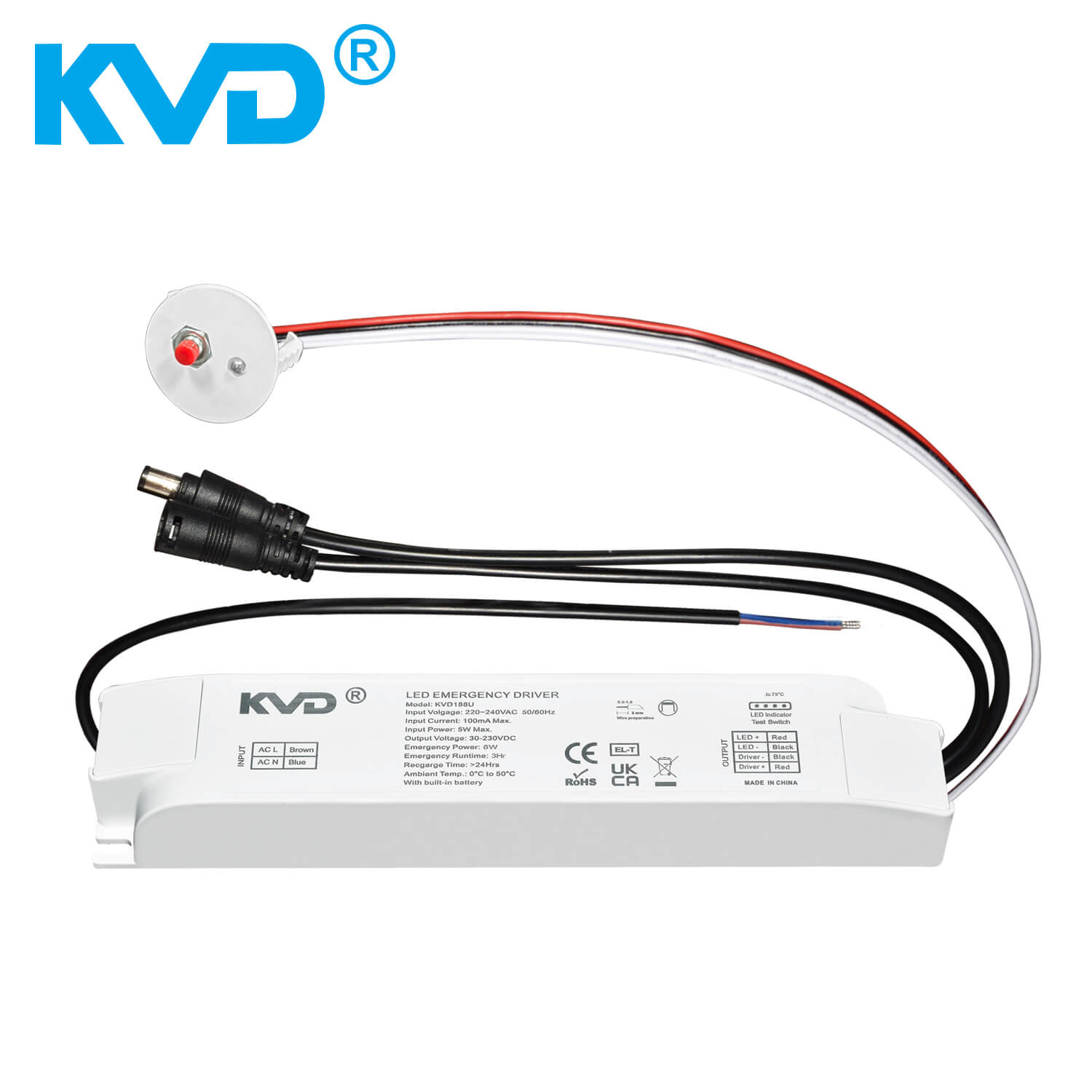

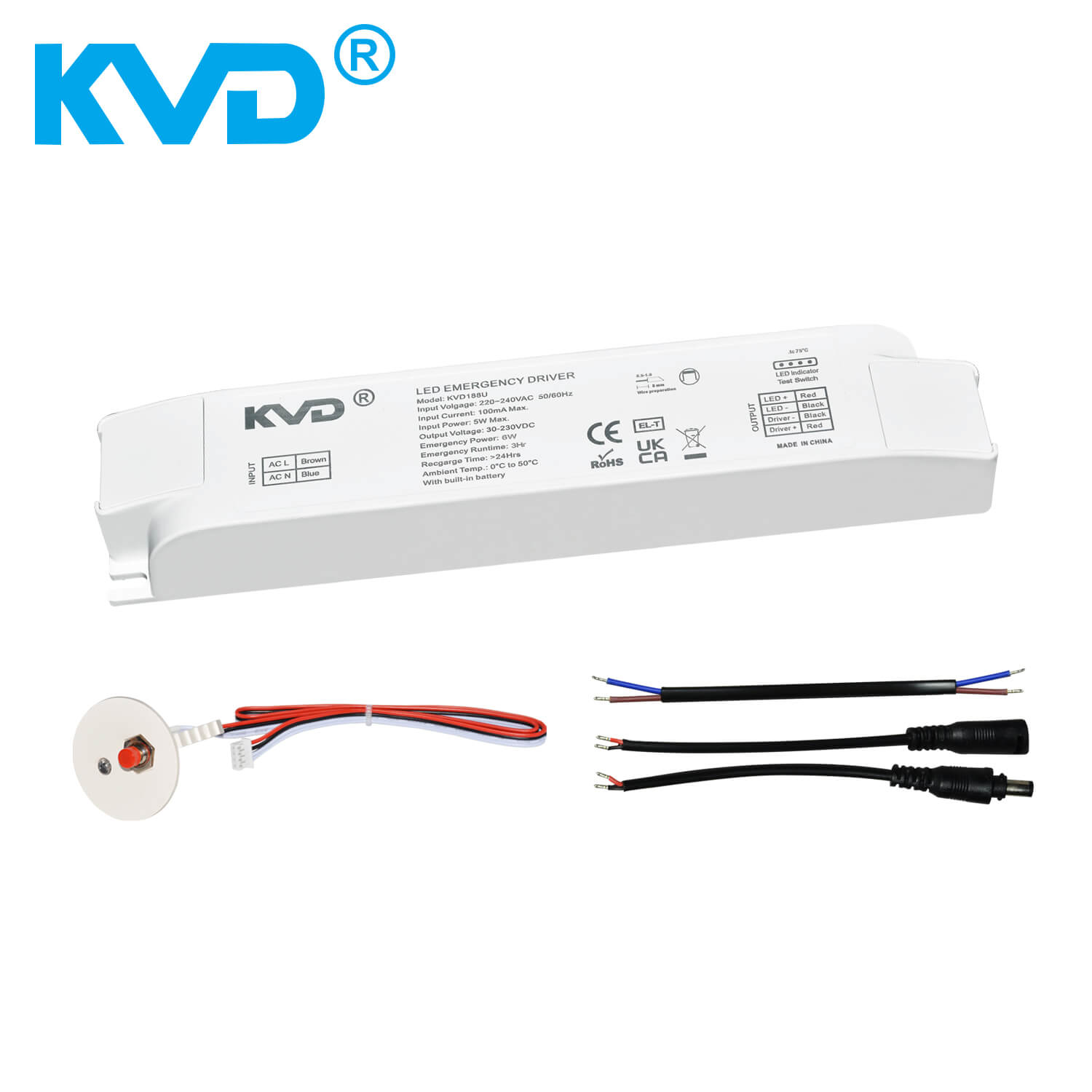

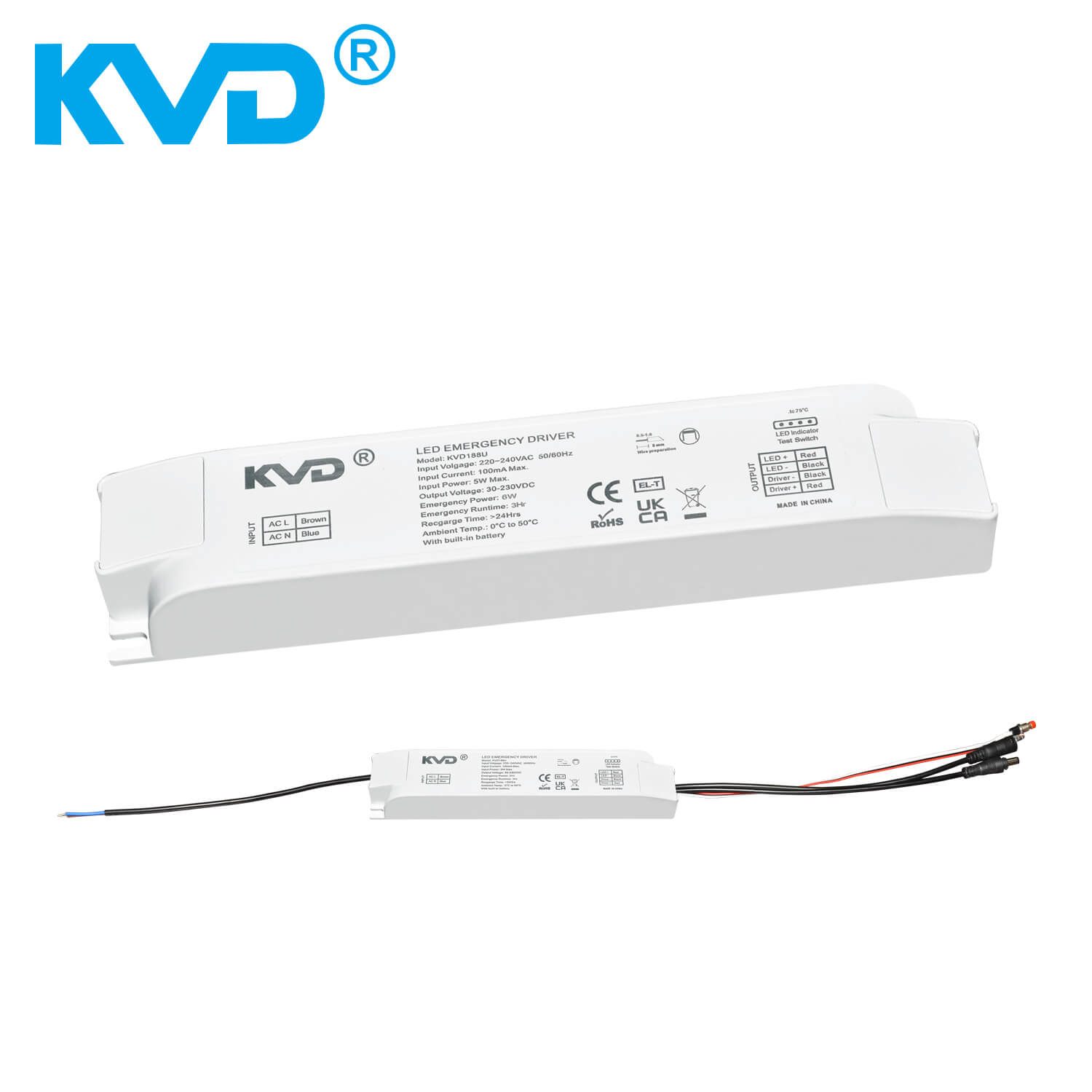

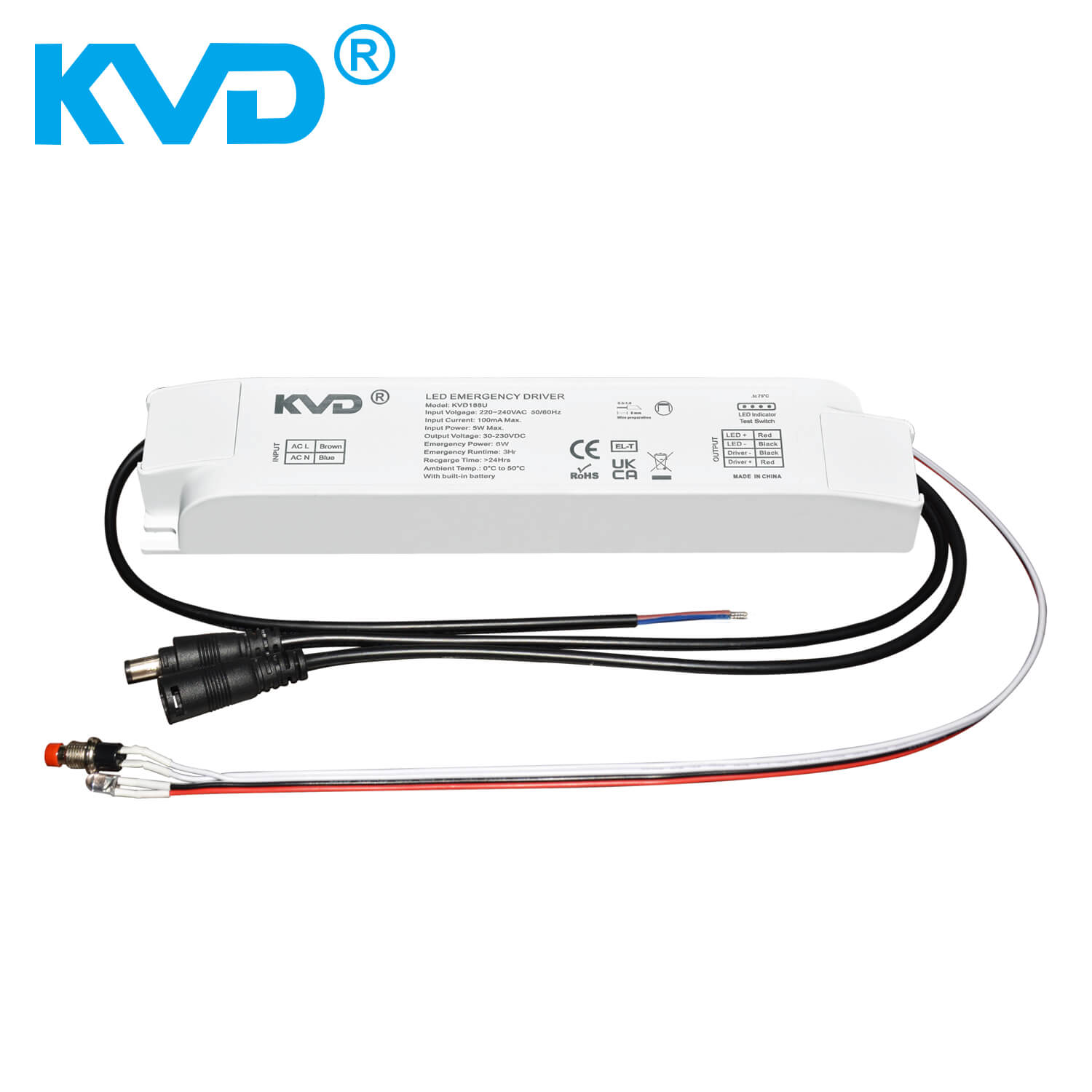

KVD188U LED Emergency Driver compatible with 15W-100W LED lighting fixtures, Emergency lasting time 180 mins , an energy-saving solution for LED lighting emergency projects, If you are looking for LED Emergency Driver Power kit for LED Panel & Downlight , please click here.
Emergency LED Driver Battery Backup Kits specifications:
1. Emergency Power: 5W 6W 8W 10W
2. Lighting fixture Power: 15W-100w
3. Conversion Efficiency: ≥95%
4. Battery Type: 2 pcs Li-ion battery inside
5. Emergency runtime : 8w and 3 hours with 4500 mAh Li-ion battery or 10w and 3 hours with 5000 mAh Li-ion battery
6. Input Voltage: AC220-240V
7. Output Voltage: DC30V-230V
8. Charging Time: 24 hours
9. Product Weight: 3000mAh Li-ion battery-300g 4500mAh Li-ion battery-350g
10. Working Lifetime(Hour)30000
11. 3 years warranty.
12. Best quality and factory price.
13. Obtain CE ROHS UKCA
Emergency Ballast Advantages:
Lighting emergency products
Obtained CE ,UKCA certifications
Comply CE ,UKCA ordinances
Compatible with all brands of constant current LED drivers
Constant power outpus
High voltage output
Low energy consumption complies with CEC standards
Charging and dis-charging protection function and over heat temp. protection
Battery zero power consumption under static state
Mock-up electricity pause emergency testing function
Can be power off under emergency status
Indication light: city grid electricity,charging, fault
Seasonal self detect function
Protection functions: over voltage, short circuit, over load and open circuit
Plastic housing, comply EMC, FCC and C tick ordinances
IP grade: IP20
We obtained international air and sea transportation documents
Working Environment Attention
Working & storage temperature: -0℃–+50℃（Standard temperature 20℃-35℃ is best ）
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching on for long time usage.
