Lighting emergency light battery backup wiring diagram 4W output power 1.5 hours

KVDEMAXXW-170 20W-150W LED emergnecy battery backup kit for LED lighting fixture with external driver at a cost-effiective way.

This UL certified LED emergency conversion kit has the LED emergency driver and li-ion battery all inside the box, it is convenient and safe for using.

Output Voltage 170VDC, Support non-isolated Driver Lighting Products

Each LED lighting emergency module is consist of emergency driver and a battery power, and sometimes there is a extra box container outside.

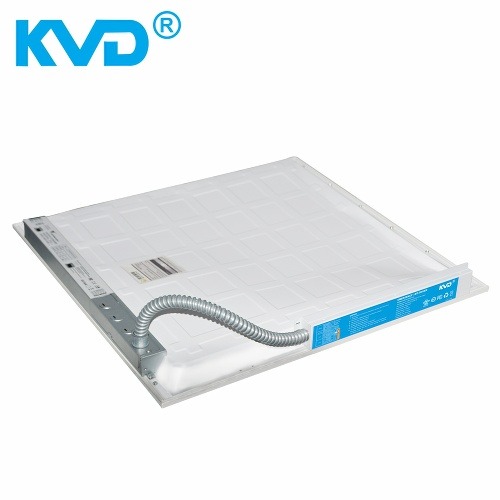

This is an energy-saving solution of LED emergency battery backup for LED Emergency Light with external driver, and also for all dimmable lighting products can apply with emergency power down function, as well as Led Light, If you are looking for LED Emergency Driver Power kit for LED Panel light, downlight series

20W-150w LED emergency battery backup Kit specifications:
1. Emergency Power : 6W 8W 10W 12W 15W 18W options
2. Lighting fixture Power: 20W-150w
3. Conversion Efficiency: ≥95%
4. Battery Type: Li-ion battery inside
5. Emergency duration time: 1.5 hour
6. Input Voltage: AC100-347V
7. Output Voltage: DC170V p.s connect to constant current driver’s input directly
8. Charging Time: 24 hours
9. Product Weight: User says ok
10. Working Lifetime(Hour)30000
11. 5 years warranty for power supply, 2 years warranty for battery
12. Best quality and factory price
13. Driver size:L345*W45*H28mm

LED emergency driver Features

Built-in multi-cell batteries, neat looking and convenient for using.
Self-test function (3 month).
Metallic case,comply EMC,FCC,C-tick IP standard:IP40
Automatically turns on LED lighting when there is a main power failure.
The LED emergency driver battery backup with overcharge and discharge protection, output short protection, overload protection, over temperature protection
With indicator: Red=Charging.
Each led emergency driver are passed 100% full power load aging test, UL Rosh certified.
Working Environment Attention

Working & storage temperature: -0℃–+50℃(Standard temperature 28℃)
To ensure a longer lifetime, LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in warehouse, emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in a right way.
Please make sure wire connection is correct before switch on for long time usage.
