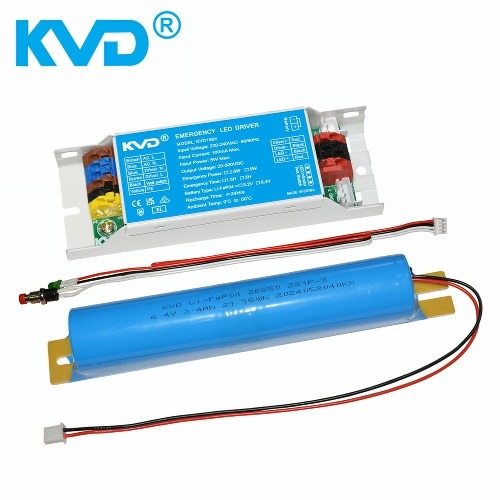

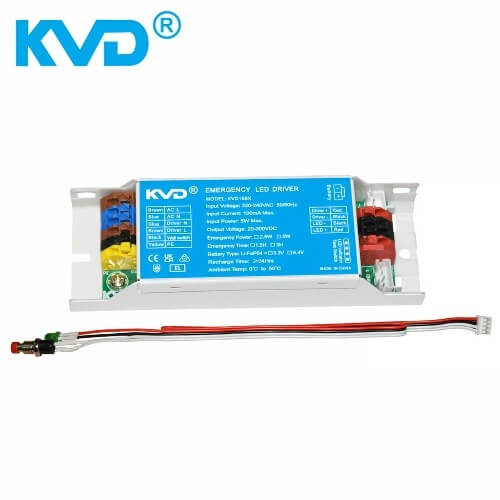

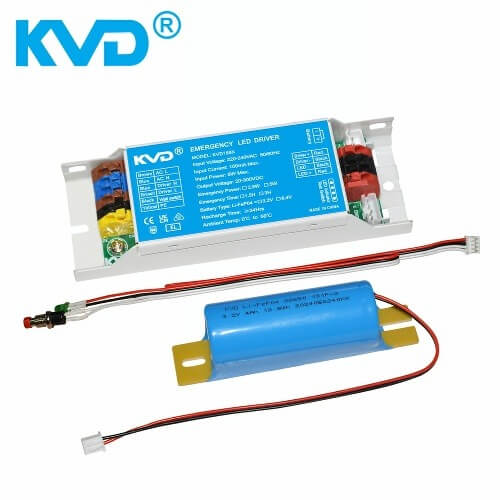

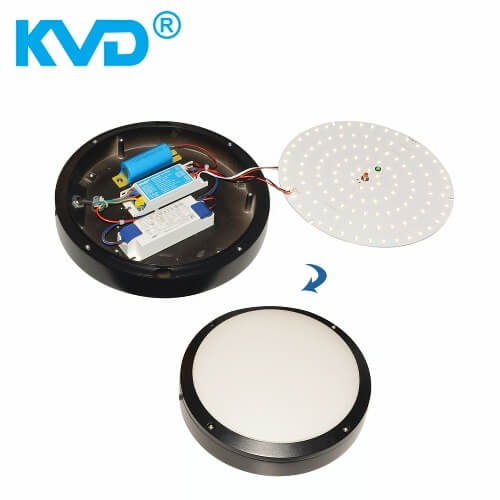

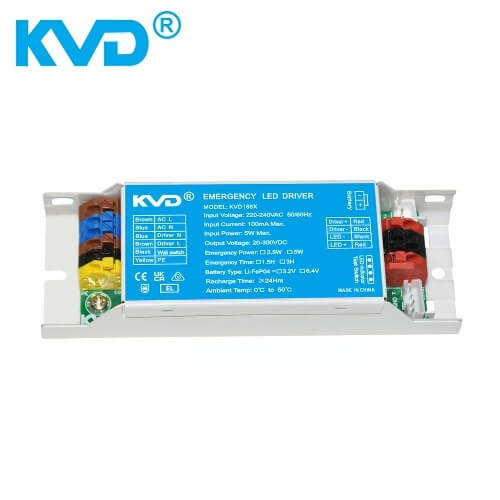

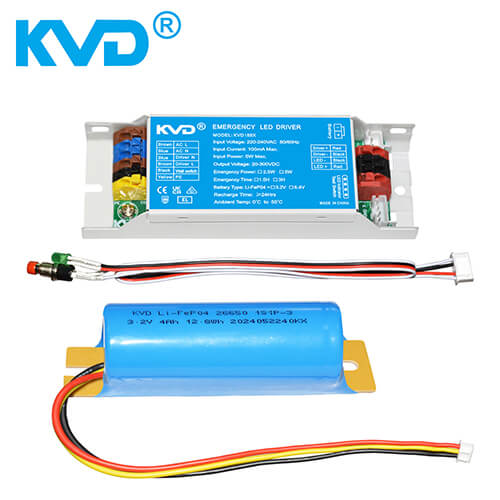

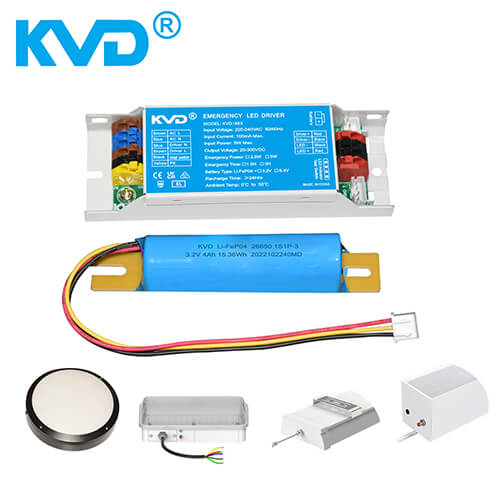

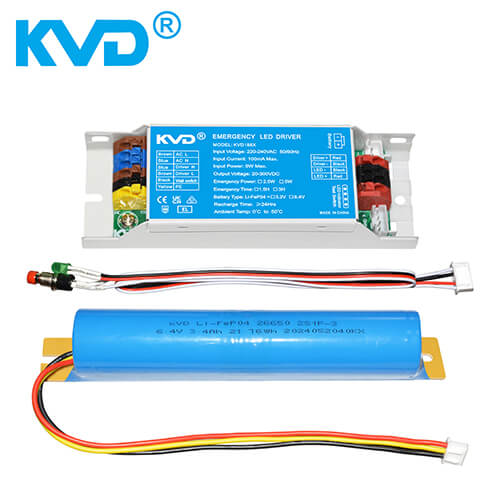

New Emergency Conversion kit for 10W-100W Tri-proof lights, Ceiling lamps and Linear lamps lighting fixture

KVD188X Emergency Conversion Kits apply in Led constant current lighting luminaires’ normal lighting or emergency lighting mode, also can be only for emergency lighting purposes.

Emergency lighting solutions provided “charging”, and “discharging” functions, and use intelligent IC controlling circuits, according to be high exchange efficiency and smaller battery capacity.

Compatible with dimming or non-dimming led luminaire, external installation, emergency supply will be standing and charging by when AC grid electricity supply in normal, will be going to self-maintenance when fully charged, according to longer the battery’s lifespan

The emergency driver will be back up the lighting luminaires within 1 second when AC grid electricity stopped, to be sure the light can be working for 1 to 3hrs normally.

Categories: , , , , , , , , ,

New Emergency Conversion kit for 10W-100W Tri-proof lights ,Ceiling lamps and Linear light fixture

This is an LED emergency  driver with battery  for indoor lights, lighting emergency solution, and LED emergency lights with an external driver, LED Panel lights, Downlights and ceiling light can only use  20% ruduce power Emergency solution. If you are looking for an emergency light module for LED lights, please click here

LED Emergency Battery Backup specifications:

1. Emergency Power: 2.5W or 5W
2. Lighting fixture Power: 10W-100w
3. Conversion Efficiency: ≥95%
4. Battery Type: 1 pcs Li-FePO4 battery inside
5. Emergency runtime :2.5w and 3 hours  with 1800mAh -6.4V  Li-FeP04 battery or 5w and 3 hours with 3600 mAh -6.4V Li-FeP04 battery
6. Input Voltage: AC220-240V
7. Output Voltage: DC30V-230V to light board
8. Charging Time: 24 hours
9. Product Weight: 1800mAh Li-ion battery-280g   3600mAh Li-ion battery-350g
10. Working Lifetime(Hour)30000
11. 3 years warranty.
12. Best quality and factory price.
13. Obtain CE ROHS UKCA

Emergency Ballast  Advantages:
Lighting emergency products
Obtained CE ,UKCA certifications
Comply CE ,UKCA ordinances
Compatible with all brands of constant current LED drivers
Constant power outpus
High voltage output
Low energy consumption complies with CEC standards
Charging and dis-charging protection function and over heat temp. protection
Battery zero power consumption under static state
Mock-up electricity pause emergency testing function
Can be power off under emergency status
Indication light: city grid electricity,charging, fault
Seasonal self detect function
Protection functions: over voltage, short circuit, over load and open circuit
Metal housing, comply EMC, FCC and C tick ordinances
IP grade: IP20
We obtained international air and sea transportation documents

Working Environment Attention

Working & storage temperature: -5℃–+60℃（Standard temperature 20℃-35℃ is best ）
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching on for long time usage.
