New Emergency Conversion kit for 10W-100W Ceiling lights,Wall lights and Linear light fixture

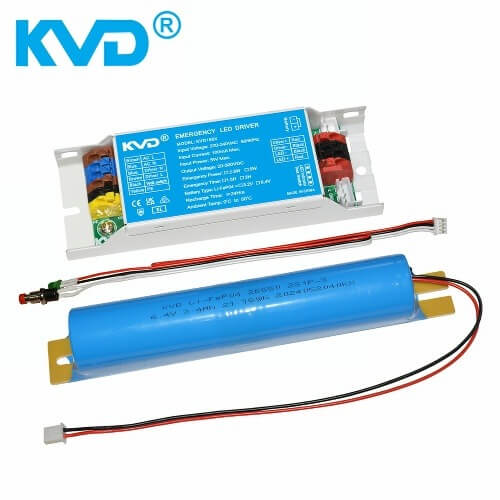

KVD-188X  Emergency Conversion Kit is suitable for normal or emergency lighting modes in LED constant-current luminaires, or for emergency lighting mode only.

This emergency lighting solution provides ‘charging’ and ‘discharging’ functions, utilising an intelligent IC control circuit with high conversion efficiency and compact battery capacity.

Compatible with both dimmable and non-dimmable LED luminaires, it features an externally mounted design. During mains power supply, the emergency power source remains in standby charging mode; upon full charge, it automatically enters self-maintenance mode to prolong battery lifespan.

Upon mains power interruption, the emergency driver activates the luminaire within 1 second, ensuring continuous operation for 1-3 hours.

Categories: , , , , , , ,

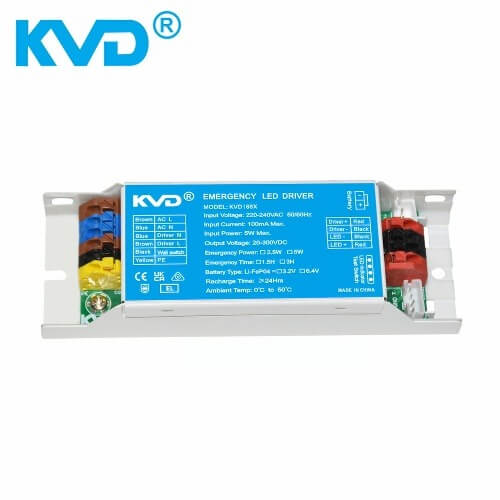

This is a battery-powered LED emergency driver suitable for most indoor lighting solutions. It is designed for use with LED emergency lights equipped with external drivers, such as ceiling lights, wall lights, Tri-proof lights and linear lights, providing 20% emergency power during outages. If you are seeking an LED emergency lighting module, please click here.

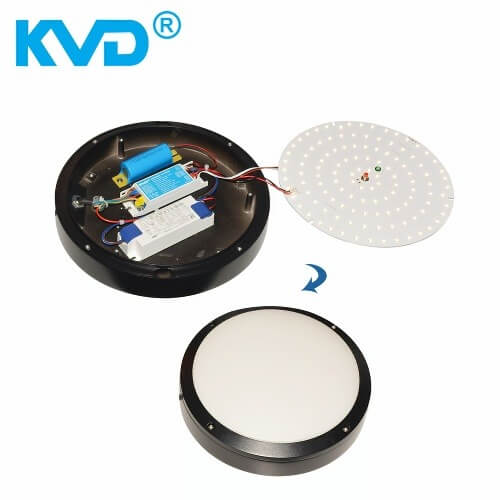

Emergency Driver is Suitable for 10-100w Ceiling lights,Wall lights and Linear lights

1. Emergency Power: 2.5W or 5W
2. Lighting fixture Power: 10W-100w
3. Conversion Efficiency: ≥95%
4. Battery Type: 1 pcs Li-FePO4 battery inside
5. Emergency runtime :2.5w and 3 hours  with 1800mAh -6.4V  Li-FeP04 battery or 5w and 3 hours with 3600 mAh -6.4V Li-FeP04 battery
6. Input Voltage: AC220-240V
7. Output Voltage: DC30V-230V to light board
8. Charging Time: 24 hours
9. Product Weight: 1800mAh Li-ion battery-280g   3600mAh Li-ion battery-350g
10. Working Lifetime(Hour)30000
11. 3 years warranty.
12. Best quality and factory price.
13. Obtain CE ROHS UKCA

Emergency Ballast  Advantages:
Lighting emergency products
Obtained CE ,UKCA certifications
Comply CE ,UKCA ordinances
Compatible with all brands of constant current LED drivers
Constant power outpus
High voltage output
Low energy consumption complies with CEC standards
Charging and dis-charging protection function and over heat temp. protection
Battery zero power consumption under static state
Mock-up electricity pause emergency testing function
Can be power off under emergency status
Indication light: city grid electricity,charging, fault
Seasonal self detect function
Protection functions: over voltage, short circuit, over load and open circuit
Metal housing, comply EMC, FCC and C tick ordinances
IP grade: IP20
We obtained international air and sea transportation documents

Working Environment Attention

Working & storage temperature: -5℃–+60℃（Standard temperature 20℃-35℃ is best ）
To ensure a longer lifetime, an LED emergency battery is needed to be charged and discharged every 3 months.
If stored longer than 3 months in the warehouse, an emergency battery is needed to be charged and discharged every 3 months.
Our emergency batteries can be charged/discharged 500 cycles if used in the right way.
Please make sure the wire connection is correct before switching on for long time usage.
